Introduction

Altera Quartus II is available for Windows and Linux. The instructions here are from version 11.0, with some updates for versions 12.0, 12.1 and 13.0. I try to keep it up to date.

Altera University Program—Learning Through Innovation The University Program simulation tools, QSim and the Waveform Editor, are bundled with the Quartus II software as of version 11.1. Please visit the Quartus II Simulator page, for more information regarding Qsim and the Waveform Editor. Altera University Program Software. This is a set of Verilog/VHDL files for the DE1/DE2 boards, as well as an easy-to-use C compiler and debugger interface for Nios II. Download the University Program Installer from here. Be sure to select the version that matches your Quartus II distribution. EECE 259 You are not using the University Program. The Altera FPGA and Quartus II Software: This is a step by step walk through of. To set-up and use Quartus software and upload it to the Altera Cyclone FPGA. I just completed a university course on this exact software and Altera board. Functions in the newer version of Quartus have been moved to Qsim.

On my YouTube channnel, I have a series of videos about Quartus II.

Using Quartus II

  1. Creating a project

    1. Creating a New Schematic
    2. Adding Text
    3. Wiring the Circuit
  2. Simulation
    Note: Since version 11.1 of Quartus II, the QSim simulator has been automatically included with Quartus II, for Windows and Linux. For simple simulations, it is easy to use.
    Following are instructions for simulations using either one.

    Simulation (using QSim)


    Simulation (using ModelSim)

    1. Preparing for the Simulation
    2. Methods of Simulation
    3. Examining the Output
  3. Programming CPLDs

In this tutorial, we will show you how you capture the schematic design for the automatic door opener circuitusing Altera Quartus II software.

Altera’s University Program web pages. These pages can be accessed from Altera’s home page at www.altera.com, by clicking on Training ¨ University Program. On the left side of the page click on Software Tools, and then select University Program Installer. Download this software and install it on your computer. For Quartus II versions 10.1 and 11.0, the Qsim tools must be installed separately by using the University Program Installer. 1.Download the Altera UPDS from the University Program section of Altera’s website. It can be found by going to www.altera.com and clicking on University Program under Education & Events. Once in the Uni-versity Program section, click on Design Software under Educational Materials, and select Altera Monitor Program.

The Problem

We are designing a circuit for an automatic door like those you see at supermarkets. The door should open only when a person is detected walking through or when a person presses a switch (such as the wheelchair button) to have the door open. The door should only operate if it has been unlocked.

  • output: f = 1 (Opens Door)
  • inputs
    • p = 1 Person Detected
    • h = 1 Switch Holding the Door Open
    • c = 1 Door Closed/Locked
  • Want door to open when
    • the door is unlocked and person walking through (c=0 and p=1)
    • the door is unlocked and the switch is set to hold it open (c=0 and h=1)

I: Drive

During Labs you will need to save all your work under a directory called CP120 in your Home Directory (drive I:)

To get to your I: or your Home Directory double click on My Computer icon on the desktop.

Under I:CP120 create the following folders

  • intro
  • task
  • project

Copy this directory from the I drive to the E drive. There are currently problems saving files directly to the I drive. Be sure to copy your files back to the I drive after you are done.

Getting Started with Altera Quartus

Launch the Altera Quartus software. You should see a screen such as this:

Creating a New project

Select the File New Project Wizard; a window like the following will appear.

To select the working directory use the button to browse and select E:CP120intro.
Name the project DoorOpener. (Note that the next field gets filled in automatically.)Select Finish.
Don't uses spaces in file or directory names.

Creating a new Schematic design

Select File New - A window as seen in the following picture will open.

Select 'Block Diagram/Schematic File' and press OK.

This should open a pane where you will design your circuit. This pane is designated Block1.bdf. Save this graphic design file as DoorOpener in your 'intro' directory. The file will be given the bdf extension; bdf stands for block design file and contains schematics, symbols or block diagrams.

Adding text

  1. There is a toolbar on the Block Diagram/Schematic File drawing pane. (This toolbar is also known as the palette). Select the A from the palette.
  2. Select a point near the top left in the window with the left mouse key.
  3. Type your name and then hit the Enter key.
  4. Type your project name and then hit the Enter key.
  5. Type the following equation, f = hc' + pc' , and then hit the Enter key.
  6. Hit the Esc (escape) key to end text additions.

Adding a Component

  1. Click the library icon from the palette.
    The Symbol dialog box will appear. This window lists the available Altera libraries as seenin this image.
  2. Expand the /altera/⟨current-version⟩/quartus/libraries folder, expand the primitives folder and then expand the logic folder.
  3. In the logic folder, select the and2 component by double clicking on it (or by selecting it with a single click, then selecting OK).
  4. Click the pointer at the desired location in the Block Diagram/Schematic Editor window to insert the AND symbol into the design file.

Repeat these steps to enter an OR (or2) gate and a NOT (not) gate.

(If you wanted to add multiple NOT gates, you could select the Repeat-insert mode box.)

In the same manner that you placed a gate onto the palette, add three input pins and one output pin from the Symbol libraries. Input pins can be found under primitives pin inputs. Output pins can be found under primitives pin outputs.

Name your input and output pins as you name them in your equation. Double click on the pin name to change its name.
Never use spaces in pin names; e.g. 'input 1' is a problem - 'input1' and 'input_1' are ok.

Rearrange your devices in approximately the placement you would like for the logic diagram you are trying to construct. You can move a component by selecting it with your mouse, holding down the left button and moving it to another location on the palette.

Save your design. It is a good idea to save your design often, just in case something bad happens .Save the bdf file with the same name as the project.
Don't use spaces in any file names.

Wiring your circuit

Select the orthogonal node tool. Place your pointer on the output of one of the input pins and hold the left mouse button down. You should see a cross-hairs or + appear at the output.

Drag your pointer to the input of the AND gate. Every time you release the mouse key, the line (wire) ends. If your wire did not reach the AND gate, you can add to the wire by putting your mouse over an end of the wire and again selecting it with your left mouse button and dragging your mouse to another position.
Don't run wires along the edge of a device. This can cause simulation problems.
Don't leave inputs and outputs right next to the chips. Make sure you can actually see some wire between them, otherwise you may have simulation problems.

Note: Make sure you do not make the wire too long. If you drag it too far you will see an x; and this is considered an open connection and your design will not compile.

To delete a wire or a portion of a wire, simply click on it (it should change color to indicate selection) and press the delete key.

If wires are connected to the component as you are moving it, the wires will drag and stay connected to the component. This is referred to as 'rubber banding' and is a feature of all major schematic entry design packages. (You can turn rubberbanding on and off using the rubberbanding tool. )Add the rest of the wires needed to connect the logic diagram.

The window should look something like image below. Contract vanzare cumparare auto germania pdf creator. Save your design.

Printing

We will not print today. But you will need to know how for your project.

Altera university program qsim download for windows 7

To print, go to File Print. If you want to change what appears on the printout or how it appears, go to File Page Setup change print settings. Before printing, you can view what the print will look like by selecting File Print Preview

Choosing a Device

The programmable device which we'll use for our design can be chosen now.

Select Assignments Device from the pull-down menu.

Select MAX7000S from the 'Family' pull-down list.Select the 'Specific device selected' and then choose EPM7064SLC44-10, which is the device we are using in our lab. Select 'OK.'


If you get a message like this, don't worry; it's fine.

Circuit Compilation

You will need to compile your design to ensure you do not have any errors in your circuit (e.g. you do not have any open connections, etc.)

Click on Processing Start Compilation to start compilation.

Circuit Simulation (using QSim)


If you're using a version of Quartus II lower than 13.0, use theinstructions for earlier versions.

Simulation using QSim for version 13.0

Note: In version 13.0 of Quartus II, QSim can be opened directly from within Quartus II, however it only works with Cyclone devices. If you've already chosen a non-Cyclone device, switch to a Cyclone device to do the simulation. Once you know your logic is correct, you can switch back to your original device.

  • To open QSim, File New New University Waveform File.

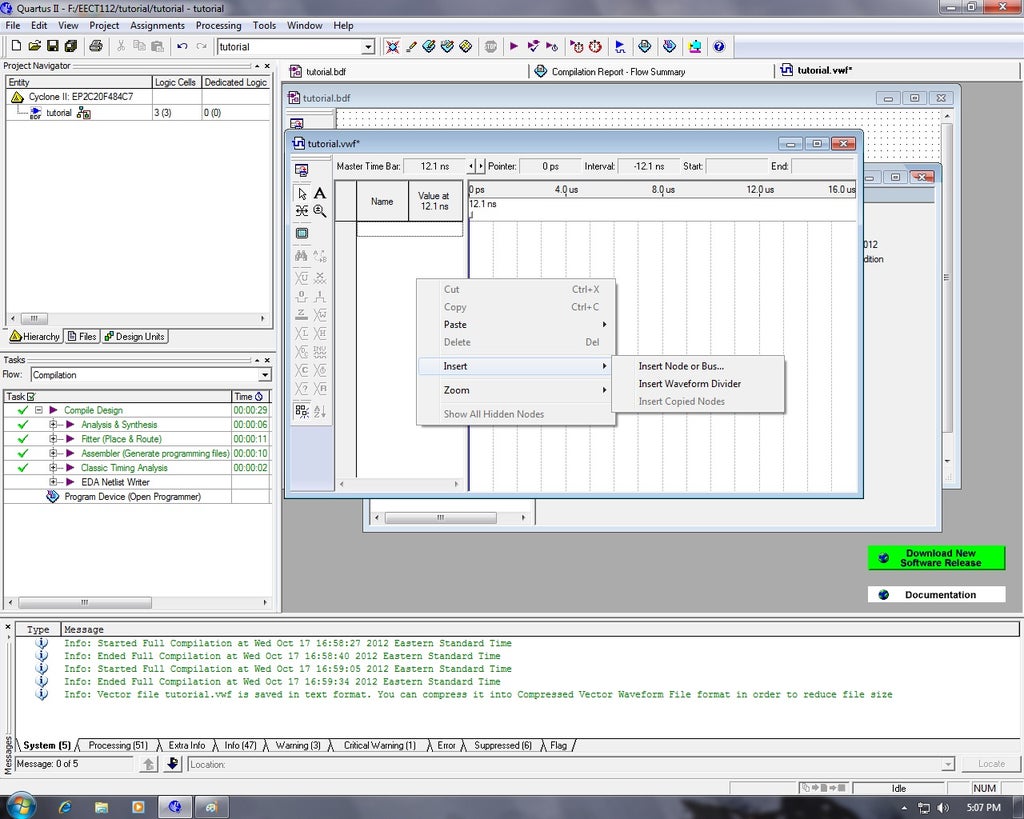

  • Select Edit Insert Insert Node or Bus.
  • Select Node Finder.
  • Select List.
  • Select the double right arrow to choose all.
  • Select OK.
  • Select OK.
  • If you have multiple inputs, you can select a bunch and group them with one counter.
  • Select your input(s), and pick Overwrite Count Value. Select OK.
  • In the Main window, select Simulation Options and then select Quartus II Simulator. Select OK.

    Note: If you haven't chosen a Cyclone device, the Quartus II Simulator option will be greyed out.

  • In the Main window, select Simulation and then select Run Functional Simulation.
    ( Alternatively, you can you the button on the tool bar.)
  • Now you should see your simulation output with the outputs defined. Note: The file will indicate 'read-only' meaning you can't edit it.
    You can expand the grouping:
  • You can navigate around the timeline, zoom in and out, etc.

    This part of the output shows that when the inputs are all zero, the output is also zero.


    This part of the output shows that when c and h are low, and p is high, the output is high.


    This part of the output shows that when c and p are low, and h is high, the output is also high.

    You can repeat this process to check all of the eight possible input combinations.


  • Now if you want, you can go back to the simulation settings and choose Timing instead of Functional to see the effects of propagation delay.
    In the Main window, select Simulation and then select Run Timing Simulation.
    ( Alternatively, you can you the button on the tool bar.)

To program a device, go to Programming CPLDs


Simulation using QSim for versions 11 and 12

Note: QSim can't be opened automatically from within Quartus II. You can invoke it by typingat a command prompt. (Run this in the directory where you find the Quartus II executable file.)
  • Open the Altera U.P. (University Program) Simulator, also called QSim.
  • Select File Open Project and choose your project file from your project directory.
  • Select File New Simulation Input File.
  • Select Edit Insert Insert Node or Bus.
  • Select Node Finder.
  • Select List.
  • Select the double right arrow to choose all.
  • Select OK.
  • Select OK.
  • If you have multiple inputs, you can select a bunch and group them with one counter.
  • Select your input(s), and pick Overwrite Count Value.


    You can change the rate at which a counter counts using the dialog.

    Select OK.
  • Select File Save As to give this file a name in your project directory. It will have a VWF extension for Vector Waveform File.
  • In the Main window, select Assign Simulation Settings and then select the file. Select Functional Simulation. Select OK.
  • Click the Start Simulator button.
  • You should get a message saying 'Generate Simulation Netlist was succesful'. Click OK.
  • You should get a message saying 'Simulator was succesful'. Click OK.
  • You should get a message from Quartus saying 'This file is read-only and cannot be edited'. Click OK.
  • Now you should see your simulation output with the outputs defined.
    You can expand the grouping:
  • You can navigate around the timeline, zoom in and out, etc.

    This part of the output shows that when the inputs are all zero, the output is also zero.


    This part of the output shows that when c and h are low, and p is high, the output is high.


    This part of the output shows that when c and p are low, and h is high, the output is also high.

    You can repeat this process to check all of the eight possible input combinations.


  • Now if you want, you can go back to the simulation settings and choose Timing instead of Functional to see the effects of propagation delay.

Go to Programming CPLDs


Circuit Simulation (using ModelSim)

Before simulating, some preparation is required.

Configure NativeLink settings:

  • NOTE: This is DONE ONCE PER PROJECT and the information is stored with the project information.
  • Select Assignments Settings. The Settings dialog box appears.
  • In the Category list, select EDA Tool Settings Simulation . The Simulation page appears.
  • In the Tool name list, select ModelSim. [Do not turn on Run gate-level simulation automatically after compilation.]
  • Format for output netlist should default to VHDL and the output directory to simulation/modelsim. [Select/enter if necessary.]
  • Select More EDA Netlist Writer Settings and change the following options:
    • Turn ON Generate netlist for functional simulation only.
    • Enter the Location of user compiled simulation library, e.g. C:/MSim_lib [if necessary].
    • Select OK.

  • Select More NativeLink Settings and change the following option:
    • Enter the Location of user compiled simulation library, e.g. C:/MSim_lib [if necessary].
    • Select OK

Convert the schematic diagram into VHDL code for simulation.

  • ModelSim requires that the system be specified in an HDL (Hardware Definition Language); we will be using VHDL
  • Have the schematic open and then select File Create/Update Create HDL Design File from Current File.
  • In the pop-up window, select file type as VHDL and the file name will show the name and path of the file. The VHDL file and the BDF file have the same name but different extensions (for example, if your BDF file is example.bdf, the VHDL file created is example.vhd).

Add the VHDL file to the project and compile for simulation.

  • Open the VHDL file using File Open. Then add it to the project using Project Add Current File to Project.
    + Note: The VHDL file has three parts:
    1. the library definitions including work where your project will be stored,
    2. the entity definition which is a wrapper that defines the inputs and outputs to the design component, and
    3. the architecture which defines what your component does.
  • Remove the BDF file from the project (system can't handle two source files for the same circuit) by selecting Project Add/Remove Files in Project and then selecting the BDF file and Remove. Note that this does not delete the file (and we do not want to delete the file). (You don't even need to close it.)

Library Compilation

It may be necessary to compile the libraries for your device familybefore you simulate.
If you are using Modelsim-Altera, you will not need to do this.All of the libraries are precompiled. If you are using Modelsim, you may need to do this.
Click on Tools Launch EDA Simulation Library Compiler.

The MAX7000S family should already be selected, soclickStart Compilation.

Don't worry if you get any error messages.

Methods for Simulation (using ModelSim)

Altera University Program Qsim Download

There are three different methods for simulation. The simplest is using forced inputs. It is easy to use with very simple circuits, but is cumbersome with more complicated ones.The next method uses waveforms, which is slightly more complex but well suited to combinational circuits where all that is needed is to go through all possible input combinations.The last method uses testbenches, which is the most complex but the most powerful. For sequential circuits where specific sequences of inputs must be tested, it is essential.


Simulation using Testbenches

Create a testbench to automate your simulation.
  • You can get Quartus to produce a shell testbench file by selecting Processing Start Start Test Bench Template Writer.
    There will now be a file in your simulationmodelsim directory. Open it.
  • The section near the bottom of the file is where you put statements for your simulation.
    Insert instructions for how you want the inputs to change through the simulation.
    Here's an example of the beginning for a very simple simulation:
  • After making the changes, you need to change the settings to include your testbench.
    Choose a New testbench.
    Give the test bench a name. It doesn't have to be the same as the file name.
    Now add the testbench file.
    Select OK to close the New Test Bench Settings window.
    Select OK to close the Test Benches window.
    Select OK to close the Settings window.
Add the testbench VHDL file to the project and compile for simulation.
  • If it's not open, open the testbench VHDL file using File Open. Then add it to the project using Project Add Current File to Project.
Launch the ModelSim simulator.
  • Compile the circuit for a functional simulation by selecting Processing Start Start Analysis & Elaboration.
  • Select Tools Run EDA Simulation Tool EDA RTL Simulation. ModelSim will display splash screen. ModelSim will load libraries and compile the project. The transcript pane at the bottom of the screen indicates the scripts that have been run (or are running).
  • Now your work library will contain two VHDL files; your circuit and your testbench. Select both, and right click to compile both.
  • Select Simulate Start Simulation to put ModelSim in simulator mode. The Start Simulation Window opens.
  • The Start Simulation window contains many tabs. The Design tab lists the designs available for simulation; most are system libraries. At the top of list will be work (default name for the library containing your program), expand work by selecting the '+'. All components in your design will be listed, select the component that is the testbench.
    Select OK. This will bring up other panes.
  • Then the left hand side of the screen should now contain a sim tab that displays the design units in your circuit and the supporting libraries. When a design unit is selected in the sim tab, the corresponding signals are shown in the objects window on the right hand side of the screen. Signals that are preceded with a plus (+) sign indicate a bus (a group of wires with common function).
Open waveform window and add signals to be simulated.
  • For each signal that you want to add to the simulation, right click on the signal name in the Objects window and select Add To Wave Selected Signal. Typically, you would want to add all inputs and outputs. A waveform window will appear in the work area.
  • Alternatively, you can add a range of signals at once by selecting the 1st signal and then, while holding down the shift key, select the last signal in the range. Then right click in the selected signal region and select Add To Wave Selected Signals. A waveform window will appear in the work area.
  • When all signals are selected, expand the Wave window.
  • If the Wave window is not floating above the ModelSim main screen, use the top left icon in the wave window to undock the window. Expand the detached window.
  • In the tool icons, find the window that contains the period of the signal, e.g. 100ns. Immediately to the right of that window will be the run simulation icon (looks like a page with a blue down arrow beside it). Click on it to run the simulation.
  • You should see the inputs that you entered and the outputs from your system on the waveform. The period of the run will correspond to the time in the period window. All signals should be green. If any signals are red, then one or more of the inputs was not specified.

Go to Examining the Output



Simulation using Forced Outputs

Launch the ModelSim simulator.
  • Compile the circuit for a functional simulation by selecting Processing Start Start Analysis & Elaboration.
  • Select Tools Run EDA Simulation Tool EDA RTL Simulation.


  • ModelSim will display splash screen. ModelSim will load libraries and compile the project. The transcript pane at the bottom of the screen indicates the scripts that have been run (or are running).
  • Method 1 Expand the 'work' library, and start the simulation of the VHDL file by right-clicking on it and choosing Simulate.
  • Method 2 Select Simulate Start Simulation to put ModelSim in simulator mode. The Start Simulation Window opens.
  • The Start Simulation window contains many tabs. The Design tab lists the designs available for simulation; most are system libraries. At the top of list will be work (default name for the library containing your program), expand work by selecting the '+'. All components in your design will be listed, select the component (or the top component in a hierarchical design). If appropriate, turn off optimization. Select OK.
  • Then the left hand side of the screen should now contain a sim tab that displays the design units in your circuit and the supporting libraries. When a design unit is selected in the sim tab, the corresponding signals are shown in the objects window on the right hand side of the screen. Signals that are preceded with a plus (+) sign indicate a bus (a group of wires with common function).
Open waveform window and add signals to be simulated.
  • For each signal that you want to add to the simulation, right click on the signal name in the Objects window and select Add To Wave Selected Signal. Typically, you would want to add all inputs and outputs. A waveform window will appear in the work area.
  • Alternatively, you can add a range of signals at once by selecting the 1st signal and then, while holding down the shift key, select the last signal in the range. Then right click in the selected signal region and select Add To Wave Selected Signals. A waveform window will appear in the work area.
  • When all signals are selected, expand the Wave window.
  • If the Wave window is not floating above the ModelSim main screen, use the top left icon in the wave window to undock the window. Expand the detached window.
Enter signal values using force.
  • To enter a signal value on a step by step basis, select an input signal and right click on the pop-up; select Force and for value enter either 0 or 1. [Kind should be freeze, delay should be 0, cancel after should be blank.] Do this for all input signals.
  • In the tool icons, find the window that contains the period of the signal, e.g. 100ns. Immediately to the right of that window will be the run simulation icon (looks like a page with a blue down arrow beside it). Click on it to run the simulation.
  • You should see the inputs that you entered and the outputs from your system on the waveform. The period of the run will correspond to the time in the period window. All signals should be green. If any signals are red, then one or more of the inputs was not specified.
  • Change one of the input signals. Select an input signal and right click on the pop-up; select Force and for value change the 0/1 to 1/0. Click on the icon to run the simulation again.
  • Repeat until all combinations have been tested.

Go to Examining the Output



Simulation using Waveforms

Launch the ModelSim simulator.
  • Compile the circuit for a functional simulation by selecting Processing Start Start Analysis & Elaboration.
  • Select Tools Run EDA Simulation Tool EDA RTL Simulation.


  • ModelSim will display splash screen. ModelSim will load libraries and compile the project. The transcript pane at the bottom of the screen indicates the scripts that have been run (or are running).
  • Method 1 Expand the 'work' library, and start the simulation of the VHDL file by right-clicking on it and choosing Simulate.
  • Method 2 Select Simulate Start Simulation to put ModelSim in simulator mode. The Start Simulation Window opens.
  • The Start Simulation window contains many tabs. The Design tab lists the designs available for simulation; most are system libraries. At the top of list will be work (default name for the library containing your program), expand work by selecting the '+'. All components in your design will be listed, select the component (or the top component in a hierarchical design). If appropriate, turn off optimization. Select OK.
  • Then the left hand side of the screen should now contain a sim tab that displays the design units in your circuit and the supporting libraries. When a design unit is selected in the sim tab, the corresponding signals are shown in the objects window on the right hand side of the screen. Signals that are preceded with a plus (+) sign indicate a bus (a group of wires with common function).
Create signals with the Waveform Editor.
  • For the first input signal that you want to add to the simulation, right click on the signal name in the Objects window and select Create Wave. A waveform window will appear in the work area.
  • A dialog will open for the signal.
    Select a counter.
  • Adjust the counter parameters.
  • The input should now show up in the Wave window.
  • Repeat this for each of the input signals.If you are using a counter for each input, you'll want to make the time period for each one twice the previous one.
  • Now add the output signal to the wave window.
  • The wave window should look like this. Note the output isn't showing any waveform yet.
    In the tool icons, find the window that contains the period of the signal, e.g. 100ns. Change the period to something long enough to show the whole simulation, e.g. 1000ns.
  • To the right of that window will be the run-all simulation icon (looks like a page with a double blue down arrow beside it). Click it to run the simulation.
    You should see the inputs that you entered and the outputs from your system on the waveform. The period of the run will correspond to the time in the period window. All signals should be green. If any signals are red, then one or more of the inputs was not specified.

Adjusting the output display

  • The output can be zoomed.
    To zoom back out to see the original, you can go to View Zoom Zoom Full.
  • The waveform can be exported to an image file.
  • Immediately to the left of the signal period window is the restart simulation icon. Selecting restart will erase all signal values entered.

Background:

Programmable Logic Device, or PLD, is a general name for a digital integrated circuit capable of being programmed to provide a variety of different functions.(The 'C' in CPLD stands for 'complex'.)

Why use a PLD?

A PLD is good for prototyping designs. Only a single chip is required to implement a complete logic design. It allows us to simplify designs and reduce development times. Changes in the design can be easily implemented by reprogramming the device. Simple PLDs (such as the one we use in our lab) can realize from 2 to 10 functions of 4 to 16 variables on a single integrated circuit


[click image to get a larger image]

Preparing the Circuit for a CPLD

If you already have a compiled design open, you can skip to assigning pins.

Open your project

Use File Open Project
You'll be using the door opener from before.

Select your Device

Select Assignments Device from the pull-down menu.

Select MAX7000S from the 'Family' pull-down list.
From the 'Available devices' choose EPM7064SLC44-10, which is the device we are using in our lab. Select 'OK.'

Compile

You will need to compile your design.

Click on Processing Start Compilation to start compilation.

Assigning Pins:

Select Assignments Pin Planner from the pull-down menu.

You'll see a schematic of your device which shows the satus of various pins, with a list of your inputs and outputs below.

You will notice that the pins around the edges of the chip have different symbols. The plain round circles with nothing written inside of them are used for input and output.

Assign all of your pins to fit in one 'bank' of CPLD connections, so only one jumper cable is required. Banks are:

  • 1-10
  • 13-22
  • 23-32
  • 35-44

For example, here is bank one.


[click image to get a larger image]

Here is bank two.


[click image to get a larger image]

Select each input and output from the bottom of the screen and drag it on top of the pin you would like to use - make sure you click on the name. (ie. if you want h to be pin 4, click h on the bottom of the screen and drag it on top of the circle under the label 4). Remember, use ONLY the plain round circles!!
You only need to assign your inputs and outputs; you will probably see some other signals listed that you didn't specify. Leave them as they are.

When you are finished you can close the window.

Recompile Design

You will need to compile your design again to fit your design on the PLD board.

Click on Processing Start Compilation to start compilation.

Setting up Programming Hardware in Quartus II Software:

Connect your USB-Blaster cable to one of the USB ports on your computer.

Note: Under linux, for the programmer to connect, do the following as root once the programmer is plugged into the computer:
From your Quartus II binary directory, (i.e. where the quartus executable is located), run

  1. jtagd
  2. jtagconfig

After this, the programmer should work.

Choose Tools Programmer. The Programmer window will open.

The selected programming hardware is identified as. If it says 'USB-Blaster [USB-0] mode JTAG' you have the correct hardware (skip to the connection step).

Click the Hardware Setup button to open the Hardware Setup window.

Programming hardware that is already set up appears in the Available hardware items window.

If the USB-Blaster is not listed as the Currently selected hardware, select it and click the Add Hardware.

Click Close.

At the main window, ensure it displays USB-Blaster[USB-0] mode JTAG (see figure below)

Connecting Programming Hardware to the Device:

Connect CPLD board to USB-Blaster cable (connected to a USB port on your PC).
The cable should be attached so that the red edge of the USB-Blaster cable is next to the number (usually a '1' or a '2') that has been written on the board with a marker. IF YOU'RE NOT SURE, ASK!!!


[click image to get a larger image]

Connect the ground and power (5v) to the CPLD board and turn the power on.

Click Auto Detect, your program should detect the CPLD.
If it doesn't, there are three possibilities:

  1. You haven't chosen the correct device.
  2. Your cables aren't connected correctly.
  3. Your CPLD is faulty.
ProblemSolution
Unable to scan device chain.

This is generally a problem with power. Check:

  1. Is the power and ground connected properly and turned on?
  2. Is the red strip on the USB-Blaster cable connected to the proper side of the board?
JTAG error

This is generally a problem with the connection. Try:

  1. Make sure you have the correct device selected
    • ensure 7064 (not 7032)
    • ensure SLC (not STC)
  2. Unplug the USB-Blaster cable and reconnect.
  3. Try a new USB-Blaster cable.
  4. Try a new CPLD board
License error

This is generally a problem if you haven't done anything with the software recently. The server times out and loses the connection to the licencing file.

  1. Close Quartus and reopen.

Once it autodetects correctly, you can proceed.

Delete the file that shows up.

Click Add File choose 'pof' file

Check Program/Configure

Select Start, you should see the progress indicator increasing slowly (fast means problem).

Wiring the Input and Output

You can unplug the USB-Blaster cable and turn off the power while you are wiring your circuit. You will not lose your program.

Use the debugger board to wire the input (use the control mode) and the output (use the display mode). (ie. c, h, p & f)

Troubleshooting

If you smell smoke turn off the power immediately and DO NOT touch the Altera chip. It gets extremely hot if it is short circuited. Check all your power and grounds, have someone else check your power and grounds - something IS wrong!! Hopefully, your chip will still work. :)

  1. First, double check your simulation to ensure that your Quartus design is correct. If it is not correct then you will not get the correct output no matter how well everything else is connected.
  2. Next, check your device, even if you think it's right.. double check. If you need to change it make sure you recompile.
    • At the top of your pin out file make sure it reads ASSIGNED TO AN: EPM7064SLC44-10
      • ensure 7064 (not 7032)
      • ensure SLC (not STC)
  3. Check your pin assignments and make sure you have not assigned any of your inputs or outputs to reserved pins or specialized pins. Plain circles only (with no writing inside).
  4. Make sure you have power and ground to your boards (CPLD, debugger, breadboard).
  5. Make sure you have the debugger board set up for input and output correctly.
  6. If some signals seem to be right and some seem to be wrong, check your pins to make sure you are in the correct place and use the multimeter to ensure you have good connections.

Introduction to Quartus II Software Design using QSim for Simulation

In this tutorial, we will show you how you capture the schematic design for the automatic door opener circuitusing Altera Quartus II software.

The Problem

We are designing a circuit for an automatic door like those you see at supermarkets. The door should open only when a person is detected walking through or when a person presses a switch (such as the wheelchair button) to have the door open. The door should only operate if it has been unlocked.

  • output: f = 1 (Opens Door)
  • inputs
    • p = 1 Person Detected
    • h = 1 Switch Holding the Door Open
    • c = 1 Door Closed/Locked
  • Want door to open when
    • the door is unlocked and person walking through (c=0 and p=1)
    • the door is unlocked and the switch is set to hold it open (c=0 and h=1)

E: Drive or flash drive

While working in the lab, you will want to work from either the E: drive on the lab machines or for a flash drive.You can copy your directory to your I: drive at the end when you are done, but there are problems working directly on the I: drive in Quartus II. Be sure to copy your files to the I: driveor a flash driveafter you are done,since files on the E: drive will be erased.
Each time you create a new project in Quartus II, create a new project directory so that all of the files for each project are in one place and not mixed up with files from other projects.

Getting Started with Altera Quartus

Launch the Altera Quartus software. You should see a screen such as this:

Creating a New project

Select the File New Project Wizard; a window like the following will appear.

Altera University Program Qsim Download Windows 7

To select the working directory use the button to browse and select E:CP120intro.
Name the project DoorOpener. (Note that the next field gets filled in automatically.)Select Finish.
Don't uses spaces in file or directory names.

Creating a new Schematic design

Select File New - A window as seen in the following picture will open.

Select 'Block Diagram/Schematic File' and press OK.

This should open a pane where you will design your circuit. This pane is designated Block1.bdf. Save this graphic design file as DoorOpener in your 'intro' directory. The file will be given the bdf extension; bdf stands for block design file and contains schematics, symbols or block diagrams.

Adding text

  1. Select the A below the arrow to the left of your Block Diagram/Schematic File window (also known as the palette).
  2. Select a point near the top left in the window with the left mouse key.
  3. Type your name and then hit the Enter key.
  4. Type your project name and then hit the Enter key.
  5. Type the following equation, f = hc' + pc' , and then hit the Enter key.
  6. Hit the Esc (escape) key to end text additions.

Adding a Component

  1. Click the library icon.The Symbol dialog box will appear. This window lists the available Altera libraries as seenin this image.
  2. Expand the /altera/quartus12.1/quartus/libraries folder, expand the primitives folder and then expand the logic folder.
  3. In the logic folder, select the and2 component by double clicking on it (or by selecting it with a single click, then selecting OK).
  4. Click the pointer at the desired location in the Block Diagram/Schematic Editor window to insert the AND symbol into the design file.

Repeat these steps to enter an OR (or2) gate and a NOT (not) gate.

(If you wanted to add multiple NOT gates, you could select the Repeat-insert mode box.)

In the same manner that you placed a gate onto the palette, add three input pins and one output pin from the Symbol libraries. Input pins can be found under primitives pin inputs. Output pins can be found under primitives pin outputs.

Name your input and output pins as you name them in your equation. Double click on the pin name to change its name.
Never use spaces in pin names; e.g. 'input 1' is a problem - 'input1' and 'input_1' are ok.

Rearrange your devices in approximately the placement you would like for the logic diagram you are trying to construct. You can move a component by selecting it with your mouse, holding down the left button and moving it to another location on the palette.

Save your design. It is a good idea to save your design often, just in case something bad happens .Save the bdf file with the same name as the project.
Don't use spaces in any file names.

Wiring your circuit

Select the orthogonal node tool. Place your pointer on the output of one of the input pins and hold the left mouse button down. You should see a cross-hairs or + appear at the output.

Drag your pointer to the input of the AND gate. Every time you release the mouse key, the line (wire) ends. If your wire did not reach the AND gate, you can add to the wire by putting your mouse over an end of the wire and again selecting it with your left mouse button and dragging your mouse to another position.
Don't run wires along the edge of a device. This can cause simulation problems.
Don't leave inputs and outputs right next to the chips. Make sure you can actually see some wire between them, otherwise you may have simulation problems.

Note: Make sure you do not make the wire too long. If you drag it too far you will see an x; and this is considered an open connection and your design will not compile.

To delete a wire or a portion of a wire, simply click on it (it should change color to indicate selection) and press the delete key.

If wires are connected to the component as you are moving it, the wires will drag and stay connected to the component. This is referred to as 'rubber banding' and is a feature of all major schematic entry design packages. (You can turn rubberbanding on and off using the rubberbanding tool. )Add the rest of the wires needed to connect the logic diagram.

The window should look something like image below. Save your design.

Printing

We will not print today. But you will need to know how for your project.

Altera University Program Qsim Download Free

To print, go to File Print. If you want to change what appears on the printout or how it appears, go to File Page Setup change print settings. Before printing, you can view what the print will look like by selecting File Print Preview

Choosing a Device

The programmable device which we'll use for our design can be chosen now.

Altera University Program Qsim Download Full

Select Assignments Device from the pull-down menu.

Select MAX7000S from the 'Family' pull-down list.Select the 'Specific device selected' and then choose EPM7064SLC44-10, which is the device we are using in our lab. Select 'OK.'


If you get a message like this, don't worry; it's fine.

Circuit Compilation

You will need to compile your design to ensure you do not have any errors in your circuit (e.g. you do not have any open connections, etc.)

Click on Processing Start Compilation to start compilation.

If you get any error messages, you'll need to fix your circuit before you can simulate it.

Common causes of errors

If you have one of these issues, you need to fix it.

  • Do you have a project (qpf) open, or just a drawing (bdf)?
  • Is your project on the I: drive?
  • Are your project (qpf) and drawing (bdf) files in differentdirectories?
  • Are there any spaces in your directory or file names?

Circuit Simulation

Note: In version 13.0 of Quartus II, QSim can be opened directly from within Quartus II, however it only works with some Cyclone devices. If you've already chosen a non-Cyclone device, switch to any Cyclone IIdevice to do the simulation. Once you know your logic is correct, you can switch back to your original device.

  1. To open QSim, File New New University Waveform File.
  2. Select Edit Insert Insert Node or Bus.
  3. Select Node Finder.
  4. Select List.
  5. Select the double right arrow to choose all.
  6. Select OK.
  7. Select OK.
  8. If you have multiple inputs, you can select a bunch and group them with one counter.
  9. Select your input(s), and pick Overwrite Count Value. Select OK.
  10. Select File Save As to give this file a name in your project directory. It will have a VWF extension for Vector Waveform File.
  11. In the Main window, select Simulation Options and then select Quartus II Simulator. Select OK.

    Note: If you haven't chosen a Cyclone device, the Quartus II Simulator option will be greyed out. In that case, assign the device to any Cyclone II device and recompile.

  12. In the Main window, select Simulation and then select Run Functional Simulation.
    ( Alternatively, you can you the button on the tool bar.)
  13. Now you should see your simulation output with the outputs defined. Note: The file will indicate 'read-only' meaning you can't edit it.
    You can expand the grouping:
  14. You can navigate around the timeline, zoom in and out, etc.

    This part of the output shows that when the inputs are all zero, the output is also zero.


    This part of the output shows that when c and h are low, and p is high, the output is high.


    This part of the output shows that when c and p are low, and h is high, the output is also high.

    You can repeat this process to check all of the eight possible input combinations.


  15. Now if you want, you can go back to the simulation settings and choose Timing instead of Functional to see the effects of propagation delay. In the Main window, select Simulation and then select Run Timing Simulation.
    ( Alternatively, you can you the button on the tool bar.)

Copy your directory from the E: drive to the I:drive or a flash drive. You'll use this project for future labs.

Demonstrate the circuit to the lab demonstrator.

Altera University Program Qsim Download Torrent

Delete everything from the E: drive so your files don't get used by someone else later.

Comments are closed.
